Implemntation of Seismogram for MsPASS. More...

#include <Seismogram.h>

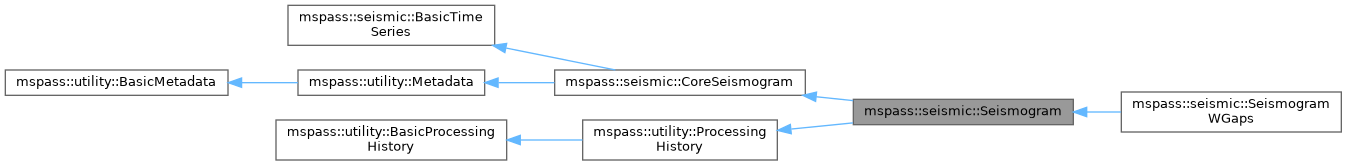

Inheritance diagram for mspass::seismic::Seismogram:

Public Member Functions
	Seismogram ()

	Seismogram (const size_t nsamples)

	Seismogram (const mspass::seismic::CoreSeismogram &d)
	Construct from lower level CoreSeismogram. More...

	Seismogram (const mspass::seismic::CoreSeismogram &d, const std::string alg)

	Seismogram (const mspass::seismic::BasicTimeSeries &bts, const mspass::utility::Metadata &md)
	Partial constructor from base classes. More...

	Seismogram (const mspass::seismic::BasicTimeSeries &b, const mspass::utility::Metadata &m, const mspass::utility::ProcessingHistory &his, const bool card, const bool ortho, const mspass::utility::dmatrix &tm, const mspass::utility::dmatrix &uin)
	Construct from all pieces. More...

	Seismogram (const Metadata &md, const std::string jobname=std::string("test"), const std::string jobid=std::string("UNDEFINED"), const std::string readername=std::string("load3C"), const std::string algid=std::string("0"))

	Seismogram (const Metadata &md, bool load_data)
	Construct from Metadata definition that includes data path. More...

	Seismogram (const Seismogram &parent)

Seismogram &	operator= (const Seismogram &parent)

void	load_history (const mspass::utility::ProcessingHistory &h)
	Load just the ProcessingHistory data from another data source. More...

size_t	memory_use () const

Public Member Functions inherited from mspass::seismic::CoreSeismogram
	CoreSeismogram ()

	CoreSeismogram (const size_t nsamples)

	CoreSeismogram (const std::vector< mspass::seismic::CoreTimeSeries > &ts, const unsigned int component_to_clone=0)

	CoreSeismogram (const mspass::utility::Metadata &md, const bool load_data=true)
	Construct from Metadata definition that includes data path. More...

	CoreSeismogram (const CoreSeismogram &)

void	set_dt (const double sample_interval)
	Set the sample interval. More...

void	set_npts (const size_t npts)
	Set the number of samples attribute for data. More...

void	sync_npts ()
	Sync the number of samples attribute with actual data size. More...

void	set_t0 (const double t0in)
	Set the data start time. More...

CoreSeismogram &	operator= (const CoreSeismogram &)

CoreSeismogram &	operator+= (const CoreSeismogram &d)
	Summation operator. More...

const CoreSeismogram	operator+ (const CoreSeismogram &other) const

CoreSeismogram &	operator*= (const double)

CoreSeismogram &	operator-= (const CoreSeismogram &d)
	Subtraction operator. More...

const CoreSeismogram	operator- (const CoreSeismogram &other) const

std::vector< double >	operator[] (const int sample) const

std::vector< double >	operator[] (const double time) const
	Overloaded version of operator[] for time. More...

virtual	~CoreSeismogram ()

void	rotate_to_standard ()

void	rotate (mspass::utility::SphericalCoordinate &sc)

void	rotate (const double nu[3])

void	rotate (const double phi)
	Rotate horizontals by a simple angle in degrees. More...

void	transform (const double a[3][3])

void	free_surface_transformation (const mspass::seismic::SlownessVector u, const double vp0, const double vs0)

mspass::utility::dmatrix	get_transformation_matrix () const

bool	set_transformation_matrix (const mspass::utility::dmatrix &A)
	Define the transformaton matrix. More...

bool	set_transformation_matrix (const double a[3][3])
	Define the transformaton matrix with a C style 3x3 matrix. More...

bool	set_transformation_matrix (pybind11::object a)
	Define the transformaton matrix with a python object. More...

bool	cardinal () const

bool	orthogonal () const

double	endtime () const noexcept

Public Member Functions inherited from mspass::seismic::BasicTimeSeries
	BasicTimeSeries ()

	BasicTimeSeries (const BasicTimeSeries &)

virtual	~BasicTimeSeries ()
	Virtual destructor. More...

double	time (const int i) const

int	sample_number (double t) const

double	endtime () const noexcept

bool	shifted () const

double	time_reference () const

void	force_t0_shift (const double t)
	Force a t0 shift value on data. More...

virtual void	ator (const double tshift)

virtual void	rtoa ()

virtual void	shift (const double dt)

bool	live () const

bool	dead () const

void	kill ()

void	set_live ()

double	dt () const

bool	time_is_UTC () const

bool	time_is_relative () const

TimeReferenceType	timetype () const

double	samprate () const

size_t	npts () const

double	t0 () const

void	set_tref (const TimeReferenceType newtref)
	Force the time standard. More...

BasicTimeSeries &	operator= (const BasicTimeSeries &parent)

Public Member Functions inherited from mspass::utility::Metadata
	Metadata ()

	Metadata (std::ifstream &ifs, const std::string form=std::string("pf"))

	Metadata (const Metadata &mdold)

virtual	~Metadata ()

Metadata &	operator= (const Metadata &mdold)

Metadata &	operator+= (const Metadata &rhs) noexcept

const Metadata	operator+ (const Metadata &other) const

double	get_double (const std::string key) const override

int	get_int (const std::string key) const override

long	get_long (const std::string key) const

std::string	get_string (const std::string key) const override

bool	get_bool (const std::string key) const override

template<typename T >
T	get (const std::string key) const

template<typename T >
T	get (const char *key) const
	Generic get interface for C char array. More...

boost::any	get_any (const std::string key) const

std::string	type (const std::string key) const

template<typename T >
void	put (const std::string key, T val) noexcept

template<typename T >
void	put (const char *key, T val) noexcept

void	put (const std::string key, const double val) override

void	put (const std::string key, const int val) override

void	put (const std::string key, const bool val) override

void	put (const std::string key, const std::string val) override

void	put (const char key, const char val)

void	put (std::string key, const char *val)

void	put_object (const std::string key, const pybind11::object val)

void	put_int (const std::string key, const int val)

void	put_string (const std::string key, const std::string val)

void	put_bool (const std::string key, const bool val)

void	put_double (const std::string key, const double val)

void	put_long (const std::string key, const long val)

void	append_chain (const std::string key, const std::string val, const std::string separator=std::string(":"))

std::set< std::string >	modified () const

void	clear_modified ()
	Mark all data as unmodified. More...

std::set< std::string >	keys () const noexcept

bool	is_defined (const std::string key) const noexcept

void	erase (const std::string key)

std::size_t	size () const noexcept

std::map< std::string, boost::any >::const_iterator	begin () const noexcept

std::map< std::string, boost::any >::const_iterator	end () const noexcept

void	change_key (const std::string oldkey, const std::string newkey)
	Change the keyword to access an attribute. More...

Public Member Functions inherited from mspass::utility::ProcessingHistory
	ProcessingHistory ()

	ProcessingHistory (const std::string jobnm, const std::string jid)

	ProcessingHistory (const ProcessingHistory &parent)

bool	is_empty () const

bool	is_raw () const

bool	is_origin () const

bool	is_volatile () const

bool	is_saved () const

size_t	number_of_stages () override
	Return number of processing stages that have been applied to this object. More...

void	set_as_origin (const std::string alg, const std::string algid, const std::string uuid, const AtomicType typ, bool define_as_raw=false)

std::string	new_ensemble_process (const std::string alg, const std::string algid, const AtomicType typ, const std::vector< ProcessingHistory * > parents, const bool create_newid=true)

void	add_one_input (const ProcessingHistory &data_to_add)
	Add one datum as an input for current data. More...

void	add_many_inputs (const std::vector< ProcessingHistory * > &d)
	Define several data objects as inputs. More...

void	merge (const ProcessingHistory &data_to_add)
	Merge the history nodes from another. More...

void	accumulate (const std::string alg, const std::string algid, const AtomicType typ, const ProcessingHistory &newinput)
	Method to use with a spark reduce algorithm. More...

std::string	clean_accumulate_uuids ()
	Clean up inconsistent uuids that can be produced by reduce. More...

std::string	new_map (const std::string alg, const std::string algid, const AtomicType typ, const ProcessingStatus newstatus=ProcessingStatus::VOLATILE)
	Define this algorithm as a one-to-one map of same type data. More...

std::string	new_map (const std::string alg, const std::string algid, const AtomicType typ, const ProcessingHistory &data_to_clone, const ProcessingStatus newstatus=ProcessingStatus::VOLATILE)
	Define this algorithm as a one-to-one map. More...

std::string	map_as_saved (const std::string alg, const std::string algid, const AtomicType typ)
	Prepare the current data for saving. More...

void	clear ()

std::multimap< std::string, mspass::utility::NodeData >	get_nodes () const

int	stage () const

ProcessingStatus	status () const

std::string	id () const

std::pair< std::string, std::string >	created_by () const

NodeData	current_nodedata () const

std::string	newid ()

int	number_inputs () const

int	number_inputs (const std::string uuidstr) const

void	set_id (const std::string newid)

std::list< mspass::utility::NodeData >	inputs (const std::string id_to_find) const
	Return a list of data that define the inputs to a give uuids. More...

ProcessingHistory &	operator= (const ProcessingHistory &parent)

Public Member Functions inherited from mspass::utility::BasicProcessingHistory
	BasicProcessingHistory (const std::string jobname, const std::string jobid)

	BasicProcessingHistory (const BasicProcessingHistory &parent)

std::string	jobid () const

void	set_jobid (const std::string &newjid)

std::string	jobname () const

void	set_jobname (const std::string jobname)

BasicProcessingHistory &	operator= (const BasicProcessingHistory &parent)

Additional Inherited Members
Public Attributes inherited from mspass::seismic::CoreSeismogram
mspass::utility::dmatrix	u

Public Attributes inherited from mspass::utility::ProcessingHistory
ErrorLogger	elog

Protected Attributes inherited from mspass::seismic::CoreSeismogram
bool	components_are_orthogonal

bool	components_are_cardinal

double	tmatrix [3][3]

Protected Attributes inherited from mspass::seismic::BasicTimeSeries
bool	mlive

double	mdt

double	mt0

size_t	nsamp

TimeReferenceType	tref

bool	t0shift_is_valid

double	t0shift

Protected Attributes inherited from mspass::utility::Metadata
std::map< std::string, boost::any >	md

std::set< std::string >	changed_or_set

Protected Attributes inherited from mspass::utility::ProcessingHistory
std::multimap< std::string, mspass::utility::NodeData >	nodes

Protected Attributes inherited from mspass::utility::BasicProcessingHistory
std::string	jid

std::string	jnm

Detailed Description

Implemntation of Seismogram for MsPASS.

This is the working version of a three-component seismogram object used in the MsPASS framework. It extends CoreSeismogram by adding ProcessingHistory.

Constructor & Destructor Documentation

◆ Seismogram() [1/9]

mspass::seismic::Seismogram::Seismogram ( )

inline

Default constructor. Only runs subclass default constructors.

18 : mspass::seismic::CoreSeismogram(),mspass::utility::ProcessingHistory(){};

mspass::seismic::CoreSeismogram

Vector (three-component) seismogram data object.

Definition: CoreSeismogram.h:40

mspass::utility::ProcessingHistory

Lightweight class to preserve procesing chain of atomic objects.

Definition: ProcessingHistory.h:258

◆ Seismogram() [2/9]

mspass::seismic::Seismogram::Seismogram ( const size_t nsamples )

Bare bones constructor allocates space and little else.

Sometimes it is helpful to construct a skeleton that can be fleshed out manually. This constructor allocates a 3xnsamples array and sets the matrix to all zeros. It also sets the orientation information to cardinal and defines the data in relative time units. The data are marked dead because the assumption is the caller will fill out commonly needed basic Metadata, load some kind of sample data into the data matrix, and then call the set_live method when that process is completed. That kind of manipulation is most common in preparing simulation or test data where the common tags on real data do not exist and need to be defined manually for the simulatioon or test. The history section is initialized with the default constructor, which currently means it is empty. If a simulation or test requires a history origin the user must load it manaually.

Parameters

nsamples is the number of 3c vector samples to iniitalize the object with (creates a 3xnsamples matrix).

    : CoreSeismogram(nsamples),ProcessingHistory()
 {
 /* Note this constructor body needs no content.  Just a wrapper for CoreSeismogram */
 }

◆ Seismogram() [3/9]

mspass::seismic::Seismogram::Seismogram ( const mspass::seismic::CoreSeismogram & d )

Construct from lower level CoreSeismogram.

In MsPASS CoreSeismogram has the primary functions that define the concept of a three-component seismogram. Seismogram implements mspass specific features needed to mesh with the mspass processing system. This constructor clones onlyh the CoreSeismogram components and initializes the ProcessingHistory with the default constructor leaves the history in an empty state. Users should call methods in ProcessingHistory to initiate a valid history chain. Processing can continue if left in that state, but the history chain will have an undefined origin. Job information will also be lost if not initialized (see BasicProcessingHistory)

Parameters

d	is the data to be copied to create the new Seismogram object

     : CoreSeismogram(d),ProcessingHistory()
 {
 }

◆ Seismogram() [4/9]

mspass::seismic::Seismogram::Seismogram	(	const mspass::seismic::CoreSeismogram &	d,
		const std::string	alg
	)

Contruct from a core seismogram and initialize history as origin.

This constructor is a variant of a similar one built only from a CoreSeismogram. This constuctor is intended to be used mainly on simulation data created by some mechanism (e.g. a python procedure). It is more rigid that the simple one arg constructor as it will create a top level history record. The record will mark the result as an origin with an id set as a uuid created by a random number generator (boost implementation). The jobname and jobid are frozen as "test". Use a different constructor and/or reset job info if more flexibility is desired. Use of this constructor is recommended only for test python programs that do not need to interact with MongoDB.

Parameters

is	core data to be cloned
alg	is the algorithm name to set for the origin history record.

◆ Seismogram() [5/9]

mspass::seismic::Seismogram::Seismogram	(	const mspass::seismic::BasicTimeSeries &	bts,
		const mspass::utility::Metadata &	md
	)

Partial constructor from base classes.

This is a partial constructor useful sometimes for building a Seismogram object from scratch such as in a simultion. It clones the Metadata and uses attributes in BasicTimeSeries to build a framework that data can be added into. It initialzies the data array to npts stored in the BasicTimeSeries passed to the constructor.

Parameters

bts	is the BasicTimeSeries that overrides any md data.
md	is the Metadata cloned to make the partially constructed object.

   : CoreSeismogram(md,false),ProcessingHistory()
 {
   /* the contents of BasicTimeSeries passed will override anything set from
   Metadata in this section.  Note also the very important use of this
   for the putters to assure proper resolution of the virtual methods */
   this->kill();   //set dead because buffer has invalid data
   this->set_t0(bts.t0());
   this->set_tref(bts.timetype());
   this->set_npts(bts.npts());
   /* The handling of these is kind of awkward in the current api.  Good to
   hide it here.   Note in current implementation force_t0_shift sets the
   shift as valid (what shifted tests).  I am slightly worried there are
   cases where the else block could create an inconsistency with active
   source data if this method were used to convert raw data.  Careful if
   this is used in that context where the time reference is defined
   implicitly as shot time with no tie to an absolute time reference */
   if(bts.shifted())
   {
     double t0shift;
     t0shift=bts.time_reference();
     this->force_t0_shift(t0shift);
   }
   else
   {
     this->force_t0_shift(0.0);
   }
 }

References mspass::seismic::BasicTimeSeries::force_t0_shift(), mspass::seismic::BasicTimeSeries::kill(), mspass::seismic::BasicTimeSeries::npts(), mspass::seismic::CoreSeismogram::set_npts(), mspass::seismic::CoreSeismogram::set_t0(), mspass::seismic::BasicTimeSeries::set_tref(), mspass::seismic::BasicTimeSeries::shifted(), mspass::seismic::BasicTimeSeries::t0(), and mspass::seismic::BasicTimeSeries::time_reference().

◆ Seismogram() [6/9]

mspass::seismic::Seismogram::Seismogram	(	const mspass::seismic::BasicTimeSeries &	b,
		const mspass::utility::Metadata &	m,
		const mspass::utility::ProcessingHistory &	his,
		const bool	card,
		const bool	ortho,
		const mspass::utility::dmatrix &	tm,
		const mspass::utility::dmatrix &	uin
	)

Construct from all pieces.

This constructor build a Seismogram object from all the pieces that define this highest level object in mspass. This constructor is planned to be hidden from python programmers and not exposed with pybind11 wrappers because is has some potentially undesirable side effects if not used carefully. The primary purpose of this constructor is for serialization and deserializaton in spark with pickle. The pickle interface is purely in C for this function so again python programmers don't need to see this constructor. The parameter names are obvious because they are associated one for one with the objects they are used to construct. The only exceptions are card and ortho which are booleans used to set the internal booleans components_are_cardinal and components_are_orthogonal respectively (two internals users should not mess with). tm is also a dmatrix representation the tmatrix stored internally as a 2d C array, but we use the dmatrix to mesh with serialization.

   : ProcessingHistory(his)
 {
   this->BasicTimeSeries::operator=(b);
   this->Metadata::operator=(m);
   components_are_cardinal=card;
   components_are_orthogonal=ortho;
   int i,j;
   for(i=0;i<3;++i)
     for(j=0;j<3;++j) tmatrix[i][j]=tm(i,j);
   this->u=uin;
 }

References mspass::seismic::CoreSeismogram::components_are_cardinal, mspass::seismic::CoreSeismogram::components_are_orthogonal, mspass::seismic::BasicTimeSeries::operator=(), mspass::utility::Metadata::operator=(), mspass::seismic::CoreSeismogram::tmatrix, and mspass::seismic::CoreSeismogram::u.

◆ Seismogram() [7/9]

mspass::seismic::Seismogram::Seismogram	(	const Metadata &	md,
		const std::string	jobname = `std::string("test")`,
		const std::string	jobid = `std::string("UNDEFINED")`,
		const std::string	readername = `std::string("load3C")`,
		const std::string	algid = `std::string("0")`
	)

Constructor driven by a Metadata object.

The flexibilityof Metadata makes it helpful at times to build a Seismogram object driven by Metadata key:value pairs. This implementation always uses file io to read the actual data and clone the Metadata. ProcessingHistory is initialized to define the result as raw data. The id field is set from Metadata using the special (frozen) key "wf_id" that is assumed to hold the string representation of an ObjectID of the waveform read.

Note all but the Metadata argument are defaulted, but setting the jobname and jobid is strongly recommended to avoid ambiguity - these define a unique run of a particular workflow.

Parameters

md	is the Metadata that is used to drive the constructor.
jobname	is the jobname (defaults to test, but should be changed)
readername	is the algorithm name assigned to the top level history record. Defaults to "load3C"

◆ Seismogram() [8/9]

mspass::seismic::Seismogram::Seismogram	(	const Metadata &	md,
		bool	load_data
	)

inline

Construct from Metadata definition that includes data path.

A Metadata object is sufficiently general that it can contain enough information to contruct an object from attributes contained in it. This constuctor uses that approach, with the actual loading of data being an option (on by default). In mspass this is constructor is used to load data with Metadata constructed from MongoDB and then using the path created from two parameters (dir and dfile used as in css3.0 wfdisc) to read data. The API is general but the implementation in mspass is very rigid. It blindly assumes the data being read are binary doubles in the right byte order and ordered in the native order for dmatrix (Fortran order). i.e. the constuctor does a raw fread of ns*3 doubles into the internal array used in the dmatrix implementation.

A second element of the Metadata that is special for MsPASS is the handling of the transformation matrix by this constructor. In MsPASS the transformation matrix is stored as a python object in MongoDB. This constructor aims to fetch that entity with the key 'tmatrix'. To be more robust and simpler to use with data not loaded from mongodb we default tmatrix to assume the data are in standard coordinates. That is, if the key tmatrix is not defined in Metadata passed as arg0, the constructor assumes it should set the transformation matrix to an identity. Use set_transformation_matrix if that assumption is wrong for your data.

Parameters

md	is the Metadata used for the construction.
load_data	if true (default) a file name is constructed from dir+"/"+dfile, the file is openned, fseek is called to foff, data are read with fread, and the file is closed. If false a dmatrix for u is still created of size 3xns, but the matrix is only initialized to all zeros.

Exceptions

Will	throw a MsPASSError if required metadata are missing.

168 : mspass::seismic::CoreSeismogram(md,load_data), mspass::utility::ProcessingHistory()

169 {};

◆ Seismogram() [9/9]

mspass::seismic::Seismogram::Seismogram ( const Seismogram & parent )

inline

Standard copy constructor.

172 : mspass::seismic::CoreSeismogram(parent), mspass::utility::ProcessingHistory(parent)

173 {};

Member Function Documentation

◆ load_history()

void mspass::seismic::Seismogram::load_history ( const mspass::utility::ProcessingHistory & h )

Load just the ProcessingHistory data from another data source.

Some algorithms don't handle processing history. In those situations it can prove helpful to manage ProcessingHistory separately and load the history data through this method.

Parameters

h	is the ProcessingHistory data to copy into this Seismogram.

 {
   this->ProcessingHistory::operator=(h);
 }

References mspass::utility::ProcessingHistory::operator=().

◆ memory_use()

size_t mspass::seismic::Seismogram::memory_use ( ) const

Return an estimate of the memmory use by the data in this object.

Memory consumed by a Seismogram object is needed to implement the sizeof method in python that dask/spark use to manage memory. Without that feature we had memory fault issues. Note the estimate this method returns should not be expected to be exact. The MsPASS implementation or any alternative implementation avoids an exact calculation because it requries an (expensive) traversal of multiple map containers.

 {
   size_t memory_estimate;
   memory_estimate = sizeof(Seismogram);
   /* data for a seismogram is 3 channels so 3*npts*/
   memory_estimate += sizeof(double)*3*this->npts();
   /* We can only estimate the size of the Metadata container.
   These constants are defined in memory_constants.h */
   memory_estimate += memory_constants::MD_AVERAGE_SIZE*this->md.size();
   memory_estimate += memory_constants::KEY_AVERAGE_SIZE*this->changed_or_set.size();
   /* Similar for history and elog containers */
   memory_estimate += memory_constants::HISTORYDATA_AVERAGE_SIZE*this->nodes.size();
   memory_estimate += memory_constants::ELOG_AVERAGE_SIZE*this->elog.size();
   return memory_estimate;
 }

References mspass::seismic::BasicTimeSeries::npts(), Seismogram(), and mspass::utility::Metadata::size().

◆ operator=()

Seismogram & mspass::seismic::Seismogram::operator= ( const Seismogram & parent )

Standard assignment operator.

 {
     if(this!=(&parent))
     {
         this->CoreSeismogram::operator=(parent);
         this->ProcessingHistory::operator=(parent);
     }
     return *this;
 }

References mspass::seismic::CoreSeismogram::operator=(), and mspass::utility::ProcessingHistory::operator=().

The documentation for this class was generated from the following files:

/home/runner/work/mspass/mspass/cxx/include/mspass/seismic/Seismogram.h
/home/runner/work/mspass/mspass/cxx/src/lib/seismic/Seismogram.cc

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Seismogram() [1/9]

◆ Seismogram() [2/9]

◆ Seismogram() [3/9]

◆ Seismogram() [4/9]

◆ Seismogram() [5/9]

◆ Seismogram() [6/9]

◆ Seismogram() [7/9]

◆ Seismogram() [8/9]

◆ Seismogram() [9/9]

Member Function Documentation

◆ load_history()

◆ memory_use()

◆ operator=()
