Implemntation of TimeSeries for MsPASS. More...

#include <TimeSeries.h>

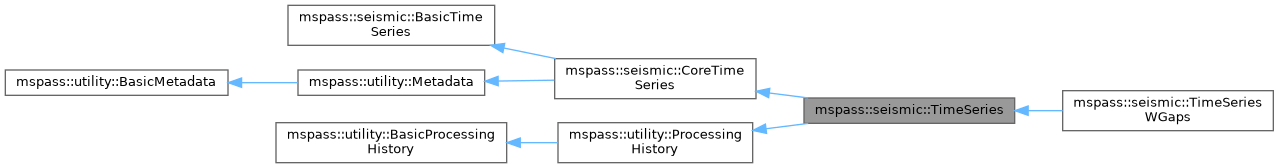

Inheritance diagram for mspass::seismic::TimeSeries:

Public Member Functions
	TimeSeries ()

	TimeSeries (const size_t nsamples)

	TimeSeries (const BasicTimeSeries &bts, const Metadata &md)

	TimeSeries (const Metadata &md)

	TimeSeries (const mspass::seismic::CoreTimeSeries &d)
	Construct from lower level CoreTimeSeries. More...

	TimeSeries (const mspass::seismic::CoreTimeSeries &d, const std::string alg)

	TimeSeries (const mspass::seismic::BasicTimeSeries &b, const mspass::utility::Metadata &m, const mspass::utility::ProcessingHistory &mcts, const std::vector< double > &d)

	TimeSeries (const TimeSeries &parent)

TimeSeries &	operator= (const TimeSeries &parent)

TimeSeries &	operator+= (const TimeSeries &d)

TimeSeries &	*operator=** (const double scale)

TimeSeries &	operator-= (const TimeSeries &d)

void	load_history (const mspass::utility::ProcessingHistory &h)

size_t	memory_use () const

Public Member Functions inherited from mspass::seismic::CoreTimeSeries
	CoreTimeSeries ()

	CoreTimeSeries (const size_t nsin)

	CoreTimeSeries (const BasicTimeSeries &bts, const Metadata &md)

	CoreTimeSeries (const CoreTimeSeries &)

void	set_dt (const double sample_interval)
	Set the sample interval. More...

void	set_npts (const size_t npts)
	Set the number of samples attribute for data. More...

void	sync_npts ()
	Sync the number of samples attribute with actual data size. More...

void	set_t0 (const double t0in)
	Set the data start time. More...

CoreTimeSeries &	operator= (const CoreTimeSeries &parent)

CoreTimeSeries &	operator+= (const CoreTimeSeries &d)
	Summation operator. More...

const CoreTimeSeries	operator+ (const CoreTimeSeries &other) const

CoreTimeSeries &	operator*= (const double)

CoreTimeSeries &	operator-= (const CoreTimeSeries &d)
	Subtraction operator. More...

const CoreTimeSeries	operator- (const CoreTimeSeries &other) const

double	operator[] (size_t const sample) const

Public Member Functions inherited from mspass::seismic::BasicTimeSeries
	BasicTimeSeries ()

	BasicTimeSeries (const BasicTimeSeries &)

virtual	~BasicTimeSeries ()
	Virtual destructor. More...

double	time (const int i) const

int	sample_number (double t) const

double	endtime () const noexcept

bool	shifted () const

double	time_reference () const

void	force_t0_shift (const double t)
	Force a t0 shift value on data. More...

virtual void	ator (const double tshift)

virtual void	rtoa ()

virtual void	shift (const double dt)

bool	live () const

bool	dead () const

void	kill ()

void	set_live ()

double	dt () const

bool	time_is_UTC () const

bool	time_is_relative () const

TimeReferenceType	timetype () const

double	samprate () const

size_t	npts () const

double	t0 () const

void	set_tref (const TimeReferenceType newtref)
	Force the time standard. More...

BasicTimeSeries &	operator= (const BasicTimeSeries &parent)

Public Member Functions inherited from mspass::utility::Metadata
	Metadata ()

	Metadata (std::ifstream &ifs, const std::string form=std::string("pf"))

	Metadata (const Metadata &mdold)

virtual	~Metadata ()

Metadata &	operator= (const Metadata &mdold)

Metadata &	operator+= (const Metadata &rhs) noexcept

const Metadata	operator+ (const Metadata &other) const

double	get_double (const std::string key) const override

int	get_int (const std::string key) const override

long	get_long (const std::string key) const

std::string	get_string (const std::string key) const override

bool	get_bool (const std::string key) const override

template<typename T >
T	get (const std::string key) const

template<typename T >
T	get (const char *key) const
	Generic get interface for C char array. More...

boost::any	get_any (const std::string key) const

std::string	type (const std::string key) const

template<typename T >
void	put (const std::string key, T val) noexcept

template<typename T >
void	put (const char *key, T val) noexcept

void	put (const std::string key, const double val) override

void	put (const std::string key, const int val) override

void	put (const std::string key, const bool val) override

void	put (const std::string key, const std::string val) override

void	put (const char key, const char val)

void	put (std::string key, const char *val)

void	put_object (const std::string key, const pybind11::object val)

void	put_int (const std::string key, const int val)

void	put_string (const std::string key, const std::string val)

void	put_bool (const std::string key, const bool val)

void	put_double (const std::string key, const double val)

void	put_long (const std::string key, const long val)

void	append_chain (const std::string key, const std::string val, const std::string separator=std::string(":"))

std::set< std::string >	modified () const

void	clear_modified ()
	Mark all data as unmodified. More...

std::set< std::string >	keys () const noexcept

bool	is_defined (const std::string key) const noexcept

void	erase (const std::string key)

std::size_t	size () const noexcept

std::map< std::string, boost::any >::const_iterator	begin () const noexcept

std::map< std::string, boost::any >::const_iterator	end () const noexcept

void	change_key (const std::string oldkey, const std::string newkey)
	Change the keyword to access an attribute. More...

Public Member Functions inherited from mspass::utility::ProcessingHistory
	ProcessingHistory ()

	ProcessingHistory (const std::string jobnm, const std::string jid)

	ProcessingHistory (const ProcessingHistory &parent)

bool	is_empty () const

bool	is_raw () const

bool	is_origin () const

bool	is_volatile () const

bool	is_saved () const

size_t	number_of_stages () override
	Return number of processing stages that have been applied to this object. More...

void	set_as_origin (const std::string alg, const std::string algid, const std::string uuid, const AtomicType typ, bool define_as_raw=false)

std::string	new_ensemble_process (const std::string alg, const std::string algid, const AtomicType typ, const std::vector< ProcessingHistory * > parents, const bool create_newid=true)

void	add_one_input (const ProcessingHistory &data_to_add)
	Add one datum as an input for current data. More...

void	add_many_inputs (const std::vector< ProcessingHistory * > &d)
	Define several data objects as inputs. More...

void	merge (const ProcessingHistory &data_to_add)
	Merge the history nodes from another. More...

void	accumulate (const std::string alg, const std::string algid, const AtomicType typ, const ProcessingHistory &newinput)
	Method to use with a spark reduce algorithm. More...

std::string	clean_accumulate_uuids ()
	Clean up inconsistent uuids that can be produced by reduce. More...

std::string	new_map (const std::string alg, const std::string algid, const AtomicType typ, const ProcessingStatus newstatus=ProcessingStatus::VOLATILE)
	Define this algorithm as a one-to-one map of same type data. More...

std::string	new_map (const std::string alg, const std::string algid, const AtomicType typ, const ProcessingHistory &data_to_clone, const ProcessingStatus newstatus=ProcessingStatus::VOLATILE)
	Define this algorithm as a one-to-one map. More...

std::string	map_as_saved (const std::string alg, const std::string algid, const AtomicType typ)
	Prepare the current data for saving. More...

void	clear ()

std::multimap< std::string, mspass::utility::NodeData >	get_nodes () const

int	stage () const

ProcessingStatus	status () const

std::string	id () const

std::pair< std::string, std::string >	created_by () const

NodeData	current_nodedata () const

std::string	newid ()

int	number_inputs () const

int	number_inputs (const std::string uuidstr) const

void	set_id (const std::string newid)

std::list< mspass::utility::NodeData >	inputs (const std::string id_to_find) const
	Return a list of data that define the inputs to a give uuids. More...

ProcessingHistory &	operator= (const ProcessingHistory &parent)

Public Member Functions inherited from mspass::utility::BasicProcessingHistory
	BasicProcessingHistory (const std::string jobname, const std::string jobid)

	BasicProcessingHistory (const BasicProcessingHistory &parent)

std::string	jobid () const

void	set_jobid (const std::string &newjid)

std::string	jobname () const

void	set_jobname (const std::string jobname)

BasicProcessingHistory &	operator= (const BasicProcessingHistory &parent)

Additional Inherited Members
Public Attributes inherited from mspass::seismic::CoreTimeSeries
std::vector< double >	s

Public Attributes inherited from mspass::utility::ProcessingHistory
ErrorLogger	elog

Protected Attributes inherited from mspass::seismic::BasicTimeSeries
bool	mlive

double	mdt

double	mt0

size_t	nsamp

TimeReferenceType	tref

bool	t0shift_is_valid

double	t0shift

Protected Attributes inherited from mspass::utility::Metadata
std::map< std::string, boost::any >	md

std::set< std::string >	changed_or_set

Protected Attributes inherited from mspass::utility::ProcessingHistory
std::multimap< std::string, mspass::utility::NodeData >	nodes

Protected Attributes inherited from mspass::utility::BasicProcessingHistory
std::string	jid

std::string	jnm

Detailed Description

Implemntation of TimeSeries for MsPASS.

This is the working version of a three-component TimeSeries object used in the MsPASS framework. It extends CoreTimeSeries by adding common MsPASS components (ProcessingHistory). It may evolve with additional special features.

Constructor & Destructor Documentation

◆ TimeSeries() [1/8]

mspass::seismic::TimeSeries::TimeSeries ( )

inline

Default constructor. Only runs subclass default constructors.

                : mspass::seismic::CoreTimeSeries(),
      mspass::utility::ProcessingHistory()
   {};

◆ TimeSeries() [2/8]

mspass::seismic::TimeSeries::TimeSeries ( const size_t nsamples )

inline

Bare bones constructor allocates space and little else.

Sometimes it is helpful to construct a skeleton that can be fleshed out manually. This constructor allocates an nsamples vector and initializes it to all zeros. The data are marked dead because the assumption is the caller will fill out commonly needed basic Metadata, load some kind of sample data into the data vector, and then call the set_live method when that process is completed. That kind of manipulation is most common in preparing simulation or test data where the common tags on real data do not exist and need to be defined manually for the simulatioon or test. The history section is initialized with the default constructor, which currently means it is empty. If a simulation or test requires a history origin the user must load it manaually.

Parameters

nsamples is the number of samples needed for storing the data vector.

                                     : mspass::seismic::CoreTimeSeries(nsamples),
       mspass::utility::ProcessingHistory()
   {};

◆ TimeSeries() [3/8]

mspass::seismic::TimeSeries::TimeSeries	(	const BasicTimeSeries &	bts,
		const Metadata &	md
	)

inline

Partially construct from components.

There are times one wants to use the Metadata area as a template to flesh out a CoreTimeSeries as what might be called skin and bones: skin is Metadata and bones as BasicTimeSeries data. This constructor initializes those two base classes but does not fully a valid data vector. It only attempts to fetch the number of points expected for the data vector using the npts metadata (integer) key (i.e. it sets npts to md.get_int("npts")). It then creates the data vector of that length and initialzies it to all zeros.

This constructor is largely a wrapper for the CoreTimeSeries version with the same signature but it also initalizes the ProcessingHistory to null (calling the default constructor)

       : mspass::seismic::CoreTimeSeries(bts,md),
          mspass::utility::ProcessingHistory()
   {};

◆ TimeSeries() [4/8]

mspass::seismic::TimeSeries::TimeSeries ( const Metadata & md )

Partially construct from Metadata alone.

This constructor is useful for interaction with MongoDB where the Metadata container is constructed directly from MongoDB documents the database uses for storage. A key restrition of this constructor is that BasicTimeSeries attributes and the size of the internal array buffer, which is set by npts, are extracted from Metadata with keys fixed in the C++ code. The following keys are required or this contructor will throw a MwPASSWrror:

dt - sample sample_interval t0 - data startttime npts - number of samples (s array will be initialized to this many zeros) time_standard - UTC or Relative (anything but UTC is taken as relative)

It will also handle but not require the two attributes used in the mspass schema to handle shifting from absolute to relative time. These keys are t0_shift - sets amount t0 has been shiftee when originally utc but set to relative with the shift method. Ignored if time is UTC or it is not defined.

                                          : ProcessingHistory()
 {
     mlive=false;
     try {
         this->Metadata::operator=(md);
         /* Names used are from mspass defintions as of Jan 2020.
         We don't need to call the set methods for these attributes as they
         would add the overhead of setting delta, startime, and npts to the
         same value passed. */
         this->mdt = this->get_double(SEISMICMD_dt);
         this->mt0 = this->get_double(SEISMICMD_t0);
         if(this->is_defined(SEISMICMD_time_standard))
         {
       string tstd = this->get_string(SEISMICMD_time_standard);
       if(tstd == "UTC")
             this->set_tref(TimeReferenceType::UTC);
       else if(tstd == "Relative")
         this->set_tref(TimeReferenceType::Relative);
           else
           {
             this->set_tref(TimeReferenceType::Relative);
             this->elog.log_error("TimeSeries Metadata constructor",
               SEISMICMD_time_standard+" attribute is not defined - set to Relative",
               ErrorSeverity::Complaint);
           }
         }
         if(this->time_is_relative())
         {
           /* It is not an error if a t0 shift is not defined and we are
           in relative time. That is the norm for active source data. */
           if(this->is_defined(SEISMICMD_t0_shift))
           {
             double t0shift=this->get_double(SEISMICMD_t0_shift);
             this->force_t0_shift(t0shift);
           }
         }
         /* this default construct is needed to handle miniseed data in
         MsPASS.  It perhaps should generate a log message a information
         but for now we do this silently.   since the constructor returns
         a result marked dead in all cases a default of 0 is sensible.*/
         long int ns;
         if(md.is_defined(SEISMICMD_npts))
         {
           ns = md.get_long(SEISMICMD_npts);
         }
         else
         {
           ns = 0;
         }
         /* this CoreTimeSeries method sets the npts attribute and
         initializes the s buffer to all zeros */
         this->set_npts(ns);
     }catch(...) {throw;};
 }

◆ TimeSeries() [5/8]

mspass::seismic::TimeSeries::TimeSeries ( const mspass::seismic::CoreTimeSeries & d )

inline

Construct from lower level CoreTimeSeries.

In MsPASS CoreTimeSeries has the primary functions that define the concept of a a single channel seismogram. TimeSeries implements mspass specific features needed to mesh with the mspass processing system. This constructor clones only the CoreTimeSeries components and initializes the ProcessingHistory with the default constructor leaving the history in an empty state. Users should call methods in ProcessingHistory to initiate a valid history chain. Processing can continue if left in that state, but the history chain will have an undefined origin. Job information will also be lost if not initialized (see BasicProcessingHistory)

Parameters

d	is the data to be copied to create the new TimeSeries object. Note that means a deep copy wherein the data vector is copied.

97 : mspass::seismic::CoreTimeSeries(d),mspass::utility::ProcessingHistory(){};

◆ TimeSeries() [6/8]

mspass::seismic::TimeSeries::TimeSeries	(	const mspass::seismic::CoreTimeSeries &	d,
		const std::string	alg
	)

Contruct from a core time series and initialize history as origin.

This constructor is a variant of a similar one built only from a CoreTimeSeries. This constuctor is intended to be used mainly on simulation data created by some mechanism (e.g. a python procedure). It is more rigid that the simple one arg constructor as it will create a top level history record. The record will mark the result as an origin with an id set as a uuid created by a random number generator (boost implementation). The jobname and jobid are frozen as "test". Use a different constructor and/or reset job info if more flexibility is desired. Use of this constructor is recommended only for test python programs that do not need to interact with MongoDB.

Parameters

is	core data to be cloned
alg	is the algorithm name to set for the origin history record.

     : CoreTimeSeries(d),ProcessingHistory()
 {
   /* Not sure this is a good idea, but will give each instance
   created by this constructor a uuid.*/
   string id=this->newid();
   this->ProcessingHistory::set_as_origin(alg,id,id,AtomicType::SEISMOGRAM,false);
   this->ProcessingHistory::set_jobname(string("test"));
   this->ProcessingHistory::set_jobid(string("test"));
 }

References mspass::utility::ProcessingHistory::newid(), and mspass::utility::ProcessingHistory::set_as_origin().

◆ TimeSeries() [7/8]

mspass::seismic::TimeSeries::TimeSeries	(	const mspass::seismic::BasicTimeSeries &	b,
		const mspass::utility::Metadata &	m,
		const mspass::utility::ProcessingHistory &	mcts,
		const std::vector< double > &	d
	)

Special constructor for pickle interface.

The pickle interface required by spark presented problems for MsPASS. The complicated data objects of TimeSeries and TimeSeries have to be serialized in pieces. This constructor is only used in the function called indirectly by pickle.load. It essentially contains a TimeSeries dismembered into the pieces that can be the serialized independently. The parameters are each associated with one of those required pieces and are simply copied to build a valid TimeSeries object in the pickle.load function

◆ TimeSeries() [8/8]

mspass::seismic::TimeSeries::TimeSeries ( const TimeSeries & parent )

inline

Standard copy constructor.

130 : mspass::seismic::CoreTimeSeries(parent), mspass::utility::ProcessingHistory(parent){};

Member Function Documentation

◆ memory_use()

size_t mspass::seismic::TimeSeries::memory_use ( ) const

Return an estimate of the memmory use by the data in this object.

Memory consumed by a TimeSeries object is needed to implement the sizeof method in python that dask/spark use to manage memory. Without that feature we had memory fault issues. Note the estimate this method returns should not be expected to be exact. The MsPASS implementation or any alternative implementation avoids an exact calculation because it requries an (expensive) traversal of multiple map containers.

 {
   size_t memory_estimate;
   memory_estimate = sizeof(TimeSeries);
   memory_estimate += sizeof(double)*this->npts();
   /* We can only estimate the size of the Metadata container.
   These constants are defined in memory_constants.h */
   memory_estimate += memory_constants::MD_AVERAGE_SIZE*this->md.size();
   memory_estimate += memory_constants::KEY_AVERAGE_SIZE*this->changed_or_set.size();
   /* Similar for history and elog containers */
   memory_estimate += memory_constants::HISTORYDATA_AVERAGE_SIZE*this->nodes.size();
   memory_estimate += memory_constants::ELOG_AVERAGE_SIZE*this->elog.size();
   return memory_estimate;
 }

References mspass::seismic::BasicTimeSeries::npts(), and TimeSeries().

◆ operator=()

TimeSeries & mspass::seismic::TimeSeries::operator= ( const TimeSeries & parent )

Standard assignment operator.

 {
     if(this!=(&parent))
     {
         this->CoreTimeSeries::operator=(parent);
         this->ProcessingHistory::operator=(parent);
     }
     return *this;
 }

References mspass::seismic::CoreTimeSeries::operator=(), and mspass::utility::ProcessingHistory::operator=().

The documentation for this class was generated from the following files:

/home/runner/work/mspass/mspass/cxx/include/mspass/seismic/TimeSeries.h
/home/runner/work/mspass/mspass/cxx/src/lib/seismic/TimeSeries.cc

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ TimeSeries() [1/8]

◆ TimeSeries() [2/8]

◆ TimeSeries() [3/8]

◆ TimeSeries() [4/8]

◆ TimeSeries() [5/8]

◆ TimeSeries() [6/8]

◆ TimeSeries() [7/8]

◆ TimeSeries() [8/8]

Member Function Documentation

◆ memory_use()

◆ operator=()
