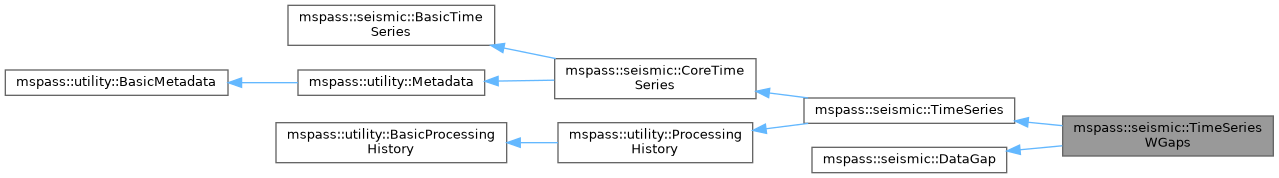

Inheritance diagram for mspass::seismic::TimeSeriesWGaps:

Public Member Functions
	TimeSeriesWGaps ()
	Constructor. More...

	TimeSeriesWGaps (const TimeSeries &parent)

	TimeSeriesWGaps (const TimeSeriesWGaps &parent)

	TimeSeriesWGaps (const TimeSeries &tsp, const DataGap &dgp)

TimeSeriesWGaps &	operator= (const TimeSeriesWGaps &parent)

void	ator (const double tshift)

void	rtoa (const double tshift)

void	rtoa ()

void	shift (const double dt)

void	zero_gaps ()

size_t	memory_use () const

Public Member Functions inherited from mspass::seismic::TimeSeries
	TimeSeries ()

	TimeSeries (const size_t nsamples)

	TimeSeries (const BasicTimeSeries &bts, const Metadata &md)

	TimeSeries (const Metadata &md)

	TimeSeries (const mspass::seismic::CoreTimeSeries &d)
	Construct from lower level CoreTimeSeries. More...

	TimeSeries (const mspass::seismic::CoreTimeSeries &d, const std::string alg)

	TimeSeries (const mspass::seismic::BasicTimeSeries &b, const mspass::utility::Metadata &m, const mspass::utility::ProcessingHistory &mcts, const std::vector< double > &d)

	TimeSeries (const TimeSeries &parent)

TimeSeries &	operator= (const TimeSeries &parent)

TimeSeries &	operator+= (const TimeSeries &d)

TimeSeries &	*operator=** (const double scale)

TimeSeries &	operator-= (const TimeSeries &d)

void	load_history (const mspass::utility::ProcessingHistory &h)

size_t	memory_use () const

Public Member Functions inherited from mspass::seismic::CoreTimeSeries
	CoreTimeSeries ()

	CoreTimeSeries (const size_t nsin)

	CoreTimeSeries (const BasicTimeSeries &bts, const Metadata &md)

	CoreTimeSeries (const CoreTimeSeries &)

void	set_dt (const double sample_interval)
	Set the sample interval. More...

void	set_npts (const size_t npts)
	Set the number of samples attribute for data. More...

void	sync_npts ()
	Sync the number of samples attribute with actual data size. More...

void	set_t0 (const double t0in)
	Set the data start time. More...

CoreTimeSeries &	operator= (const CoreTimeSeries &parent)

CoreTimeSeries &	operator+= (const CoreTimeSeries &d)
	Summation operator. More...

const CoreTimeSeries	operator+ (const CoreTimeSeries &other) const

CoreTimeSeries &	operator*= (const double)

CoreTimeSeries &	operator-= (const CoreTimeSeries &d)
	Subtraction operator. More...

const CoreTimeSeries	operator- (const CoreTimeSeries &other) const

double	operator[] (size_t const sample) const

Public Member Functions inherited from mspass::seismic::BasicTimeSeries
	BasicTimeSeries ()

	BasicTimeSeries (const BasicTimeSeries &)

virtual	~BasicTimeSeries ()
	Virtual destructor. More...

double	time (const int i) const

int	sample_number (double t) const

double	endtime () const noexcept

bool	shifted () const

double	time_reference () const

void	force_t0_shift (const double t)
	Force a t0 shift value on data. More...

bool	live () const

bool	dead () const

void	kill ()

void	set_live ()

double	dt () const

bool	time_is_UTC () const

bool	time_is_relative () const

TimeReferenceType	timetype () const

double	samprate () const

size_t	npts () const

double	t0 () const

void	set_tref (const TimeReferenceType newtref)
	Force the time standard. More...

BasicTimeSeries &	operator= (const BasicTimeSeries &parent)

Public Member Functions inherited from mspass::utility::Metadata
	Metadata ()

	Metadata (std::ifstream &ifs, const std::string form=std::string("pf"))

	Metadata (const Metadata &mdold)

virtual	~Metadata ()

Metadata &	operator= (const Metadata &mdold)

Metadata &	operator+= (const Metadata &rhs) noexcept

const Metadata	operator+ (const Metadata &other) const

double	get_double (const std::string key) const override

int	get_int (const std::string key) const override

long	get_long (const std::string key) const

std::string	get_string (const std::string key) const override

bool	get_bool (const std::string key) const override

template<typename T >
T	get (const std::string key) const

template<typename T >
T	get (const char *key) const
	Generic get interface for C char array. More...

boost::any	get_any (const std::string key) const

std::string	type (const std::string key) const

template<typename T >
void	put (const std::string key, T val) noexcept

template<typename T >
void	put (const char *key, T val) noexcept

void	put (const std::string key, const double val) override

void	put (const std::string key, const int val) override

void	put (const std::string key, const bool val) override

void	put (const std::string key, const std::string val) override

void	put (const char key, const char val)

void	put (std::string key, const char *val)

void	put_object (const std::string key, const pybind11::object val)

void	put_int (const std::string key, const int val)

void	put_string (const std::string key, const std::string val)

void	put_bool (const std::string key, const bool val)

void	put_double (const std::string key, const double val)

void	put_long (const std::string key, const long val)

void	append_chain (const std::string key, const std::string val, const std::string separator=std::string(":"))

std::set< std::string >	modified () const

void	clear_modified ()
	Mark all data as unmodified. More...

std::set< std::string >	keys () const noexcept

bool	is_defined (const std::string key) const noexcept

void	erase (const std::string key)

std::size_t	size () const noexcept

std::map< std::string, boost::any >::const_iterator	begin () const noexcept

std::map< std::string, boost::any >::const_iterator	end () const noexcept

void	change_key (const std::string oldkey, const std::string newkey)
	Change the keyword to access an attribute. More...

Public Member Functions inherited from mspass::utility::ProcessingHistory
	ProcessingHistory ()

	ProcessingHistory (const std::string jobnm, const std::string jid)

	ProcessingHistory (const ProcessingHistory &parent)

bool	is_empty () const

bool	is_raw () const

bool	is_origin () const

bool	is_volatile () const

bool	is_saved () const

size_t	number_of_stages () override
	Return number of processing stages that have been applied to this object. More...

void	set_as_origin (const std::string alg, const std::string algid, const std::string uuid, const AtomicType typ, bool define_as_raw=false)

std::string	new_ensemble_process (const std::string alg, const std::string algid, const AtomicType typ, const std::vector< ProcessingHistory * > parents, const bool create_newid=true)

void	add_one_input (const ProcessingHistory &data_to_add)
	Add one datum as an input for current data. More...

void	add_many_inputs (const std::vector< ProcessingHistory * > &d)
	Define several data objects as inputs. More...

void	merge (const ProcessingHistory &data_to_add)
	Merge the history nodes from another. More...

void	accumulate (const std::string alg, const std::string algid, const AtomicType typ, const ProcessingHistory &newinput)
	Method to use with a spark reduce algorithm. More...

std::string	clean_accumulate_uuids ()
	Clean up inconsistent uuids that can be produced by reduce. More...

std::string	new_map (const std::string alg, const std::string algid, const AtomicType typ, const ProcessingStatus newstatus=ProcessingStatus::VOLATILE)
	Define this algorithm as a one-to-one map of same type data. More...

std::string	new_map (const std::string alg, const std::string algid, const AtomicType typ, const ProcessingHistory &data_to_clone, const ProcessingStatus newstatus=ProcessingStatus::VOLATILE)
	Define this algorithm as a one-to-one map. More...

std::string	map_as_saved (const std::string alg, const std::string algid, const AtomicType typ)
	Prepare the current data for saving. More...

void	clear ()

std::multimap< std::string, mspass::utility::NodeData >	get_nodes () const

int	stage () const

ProcessingStatus	status () const

std::string	id () const

std::pair< std::string, std::string >	created_by () const

NodeData	current_nodedata () const

std::string	newid ()

int	number_inputs () const

int	number_inputs (const std::string uuidstr) const

void	set_id (const std::string newid)

std::list< mspass::utility::NodeData >	inputs (const std::string id_to_find) const
	Return a list of data that define the inputs to a give uuids. More...

ProcessingHistory &	operator= (const ProcessingHistory &parent)

Public Member Functions inherited from mspass::utility::BasicProcessingHistory
	BasicProcessingHistory (const std::string jobname, const std::string jobid)

	BasicProcessingHistory (const BasicProcessingHistory &parent)

std::string	jobid () const

void	set_jobid (const std::string &newjid)

std::string	jobname () const

void	set_jobname (const std::string jobname)

BasicProcessingHistory &	operator= (const BasicProcessingHistory &parent)

Public Member Functions inherited from mspass::seismic::DataGap
	DataGap ()

	DataGap (const std::list< mspass::algorithms::TimeWindow > &twlist)

	DataGap (const DataGap &parent)

bool	is_gap (const double ttest)

bool	has_gap (const mspass::algorithms::TimeWindow twin)

bool	has_gap ()

void	add_gap (const mspass::algorithms::TimeWindow tw)

std::list< mspass::algorithms::TimeWindow >	get_gaps () const

void	clear_gaps ()
	Clear gaps. More...

int	number_gaps () const

DataGap	subset (const mspass::algorithms::TimeWindow tw) const

void	translate_origin (double time_of_new_origin)

DataGap &	operator= (const DataGap &parent)

DataGap &	operator+= (const DataGap &other)

Additional Inherited Members
Public Attributes inherited from mspass::seismic::CoreTimeSeries
std::vector< double >	s

Public Attributes inherited from mspass::utility::ProcessingHistory
ErrorLogger	elog

Protected Attributes inherited from mspass::seismic::BasicTimeSeries
bool	mlive

double	mdt

double	mt0

size_t	nsamp

TimeReferenceType	tref

bool	t0shift_is_valid

double	t0shift

Protected Attributes inherited from mspass::utility::Metadata
std::map< std::string, boost::any >	md

std::set< std::string >	changed_or_set

Protected Attributes inherited from mspass::utility::ProcessingHistory
std::multimap< std::string, mspass::utility::NodeData >	nodes

Protected Attributes inherited from mspass::utility::BasicProcessingHistory
std::string	jid

std::string	jnm

Protected Attributes inherited from mspass::seismic::DataGap
std::set< mspass::algorithms::TimeWindow, mspass::algorithms::TimeWindowCmp >	gaps
	Holds data gap definitions. We use an STL set object to define data gaps for any time series object derived from this base class. The set is keyed by a TimeWindow which allows a simple, fast way to define a time range with invalid data.

Constructor & Destructor Documentation

◆ TimeSeriesWGaps() [1/3]

mspass::seismic::TimeSeriesWGaps::TimeSeriesWGaps ( )

inline

Constructor.

Will need a set of conastructors. Requires some thought as how to set gap is an issue.

13 :TimeSeries(),DataGap(){};

mspass::seismic::DataGap::DataGap

DataGap()

Definition: DataGap.h:28

mspass::seismic::TimeSeries::TimeSeries

TimeSeries()

Definition: TimeSeries.h:18

◆ TimeSeriesWGaps() [2/3]

mspass::seismic::TimeSeriesWGaps::TimeSeriesWGaps ( const TimeSeries & parent )

inline

Partial copy constructor from a plain TimeSeries.

Sometimes we need to build the skeleton of a gappy TimeSeries from a regular TimeSeries. This does that and builds makes a copy of the TimeSeries and creates an empty container that defines the gaps.

19 : TimeSeries(parent),DataGap(){};

◆ TimeSeriesWGaps() [3/3]

mspass::seismic::TimeSeriesWGaps::TimeSeriesWGaps ( const TimeSeriesWGaps & parent )

inline

Copy constructor.

22 : TimeSeries(dynamic_cast<const TimeSeries&>(parent)),

23 DataGap(dynamic_cast<const DataGap&>(parent)){};;

Member Function Documentation

◆ ator()

void mspass::seismic::TimeSeriesWGaps::ator ( const double tshift )

virtual

Absolute to relative time conversion. Sometimes we want to convert data from absolute time (epoch times) to a relative time standard. Examples are conversions to travel time using an event origin time or shifting to an arrival time reference frame. This operation simply switches the tref variable and alters t0 by tshift.

This method overrides the one in BasicTimeSeries to correctly reference gaps.

Parameters

tshift - time shift applied to data before switching data to relative time mode.

Reimplemented from mspass::seismic::BasicTimeSeries.

 {
   /* dead traces should to totally ignored */
   if(this->dead()) return;
   if(tref==TimeReferenceType::Relative) return;
   this->t0shift=tshift;
   this->mt0 -= tshift;
   // We have to shift all the gap windows definitions
   TimeWindow tw;
   std::set <TimeWindow,TimeWindowCmp> shifted_gaps;
   std::set <TimeWindow,TimeWindowCmp>::iterator this_gap;
   for(this_gap=gaps.begin();this_gap!=gaps.end();++this_gap)
   {
     tw.start = this_gap->start - tshift;
     tw.end = this_gap->end - tshift;
     shifted_gaps.insert(tw);
   }
   /* the section below is a replacement for the following simple
   construct that worked in the old seispp library that used a
   similar construct for gaps:
   this->gaps = shifted_gaps;
   Had to use the clear and loop below because g++ complained about operator=
   not being defined for the set container.   This loop is likely actually
   faster than having to call operator= anyway but why this fails is unknown. */
   this->gaps.clear();
   for(this_gap=shifted_gaps.begin();this_gap!=shifted_gaps.end();++this_gap)
   {
     this->gaps.insert(*this_gap);
   }
   this->tref=TimeReferenceType::Relative;
   this->t0shift_is_valid=true;

 }

References mspass::algorithms::TimeWindow::end, mspass::seismic::Relative, and mspass::algorithms::TimeWindow::start.

◆ memory_use()

size_t mspass::seismic::TimeSeriesWGaps::memory_use ( ) const

Return an estimate of the memmory use by the data in this object.

Memory consumed by a TimeSeriesWGaps object is needed to implement the sizeof method in python that dask/spark use to manage memory. Without that feature we had memory fault issues. Note the estimate this method returns should not be expected to be exact. The MsPASS implementation or any alternative implementation avoids an exact calculation because it requries an (expensive) traversal of multiple map containers.

 {
   size_t memory_estimate;
   memory_estimate = TimeSeries::memory_use();
   memory_estimate += DATA_GAP_AVERAGE_SIZE*gaps.size();
   return memory_estimate;
 }

References mspass::seismic::TimeSeries::memory_use().

◆ rtoa() [1/2]

void mspass::seismic::TimeSeriesWGaps::rtoa ( )

virtual

Relative to absolute time conversion. Sometimes we want to convert data from relative time to to an absolute time standard. An example would be converting segy shot data to something that could be processed like earthquake data in a css3.0 database.

This method returns data previously converted to relative back to absolute using the internally stored time shift attribute.

This method overrides the one in BasicTimeSeries to correctly reference gaps.

Reimplemented from mspass::seismic::BasicTimeSeries.

 {
   /* dead traces should to totally ignored */
   if(this->dead()) return;
   const std::string errormess("TimeSeriesWGaps::rtoa() t0shift for conversion is not defined.");
   /* This perhaps should create a complaint  message */
   if(tref==TimeReferenceType::UTC) return;
   /* A rather odd test for a nonzero.   We use 100 s assuming no active
   * source data would use a shift longer than that unless it really did
   * have an absolute time standard. Also assumes we'll never use data from
   * the first 2 minutes of 1960.*/
   if(t0shift_is_valid || (t0shift>100.0) )
   {
     this->mt0 += this->t0shift;
     TimeWindow tw;
     std::set <TimeWindow,TimeWindowCmp> shifted_gaps;
     std::set <TimeWindow,TimeWindowCmp>::iterator this_gap;
     for(this_gap=gaps.begin();this_gap!=gaps.end();++this_gap)
     {
       tw.start = this_gap->start + t0shift;
       tw.end = this_gap->end + t0shift;
       shifted_gaps.insert(tw);
     }
     /* See related comment on why the line below will not compile */
     //this->gaps = shifted_gaps;
     this->gaps.clear();
     for(this_gap=shifted_gaps.begin();this_gap!=shifted_gaps.end();++this_gap)
     {
       this->gaps.insert(*this_gap);
     }
     this->tref=TimeReferenceType::UTC;
     t0shift_is_valid=false;
   }
   else
   {
     this->kill();
     throw MsPASSError(errormess,ErrorSeverity::Invalid);
   }
 }

References mspass::algorithms::TimeWindow::end, mspass::algorithms::TimeWindow::start, and mspass::seismic::UTC.

◆ rtoa() [2/2]

void mspass::seismic::TimeSeriesWGaps::rtoa ( const double tshift )

Relative to absolute time conversion. Sometimes we want to convert data from relative time to to an absolute time standard. An example would be converting segy shot data to something that could be processed like earthquake data in a css3.0 database. This operation simply switches the tref variable and alters t0 by tshift.

This method overrides the one in BasicTimeSeries to correctly reference gaps.

Parameters

tshift - time shift applied to data before switching data to absolute time mode.

NOTE: This method is maintained only for backward compatibility. May be depricated in favor of method that uses internally stored private shift variable.

 {
   /* dead traces should to totally ignored */
   if(this->dead()) return;
   if(tref==TimeReferenceType::UTC) return;
   this->mt0 += tshift;
   TimeWindow tw;
   std::set <TimeWindow,TimeWindowCmp> shifted_gaps;
   std::set <TimeWindow,TimeWindowCmp>::iterator this_gap;
   for(this_gap=gaps.begin();this_gap!=gaps.end();++this_gap)
   {
     tw.start = this_gap->start + tshift;
     tw.end = this_gap->end + tshift;
     shifted_gaps.insert(tw);
   }
   /* See related comment on why the line below will not compile */
   //this->gaps = shifted_gaps;
   this->gaps.clear();
   for(this_gap=shifted_gaps.begin();this_gap!=shifted_gaps.end();++this_gap)
   {
     this->gaps.insert(*this_gap);
   }
   this->tref=TimeReferenceType::UTC;
   this->t0shift_is_valid=true;
 }

References mspass::algorithms::TimeWindow::end, mspass::algorithms::TimeWindow::start, and mspass::seismic::UTC.

◆ shift()

void mspass::seismic::TimeSeriesWGaps::shift ( const double dt )

virtual

Shift the reference time.

Sometimes we need to shift the reference time t0. An example is a moveout correction. This method shifts the reference time by dt. Note a positive dt means data aligned to zero will be shifted left because relative time is t-t0.

Reimplemented from mspass::seismic::BasicTimeSeries.

 {
   /* This is the same test for valid t0shift used in BasicTimeSeries*/
   if(this->t0shift_is_valid || (this->t0shift>100.0) )
   {
     double oldt0shift=this->t0shift;
     this->rtoa();
     this->ator(oldt0shift+dt);
   }
   else
   {
     this->kill();
     std::stringstream ss;
     ss<<"TimeSeriesWGaps::shift:  internal shift attributes is marked invalid"
        <<std::endl
        <<"shift method should only be used on data originating with a UTC time standard"
        <<std::endl;
     throw MsPASSError(ss.str(),ErrorSeverity::Invalid);
   }
 }

◆ zero_gaps()

void mspass::seismic::TimeSeriesWGaps::zero_gaps ( )

Force all data inside data gaps to zero.

 {
   int i,istart,iend;
   std::set<TimeWindow,TimeWindowCmp>::iterator this_gap;

   for(this_gap=gaps.begin();this_gap!=gaps.end();++this_gap)
   {
     if(this_gap->end < this->mt0) continue;
     if(this_gap->start > this->endtime()) continue;
     if(this_gap->start<this->mt0)
       istart = 0;
     else
       istart = round((this_gap->start-this->mt0)/this->mdt);
     if((this_gap->end) > this->endtime())
       iend = this->nsamp - 1;
     else
       iend = round((this_gap->end-mt0)/this->mdt);
     for(i=istart;i<=iend;++i) this->s[i]=0.0;
   }
 }

The documentation for this class was generated from the following files:

/home/runner/work/mspass/mspass/cxx/include/mspass/seismic/TimeSeriesWGaps.h
/home/runner/work/mspass/mspass/cxx/src/lib/seismic/TimeSeriesWGaps.cc

Public Member Functions

Additional Inherited Members

Constructor & Destructor Documentation

◆ TimeSeriesWGaps() [1/3]

◆ TimeSeriesWGaps() [2/3]

◆ TimeSeriesWGaps() [3/3]

Member Function Documentation

◆ ator()

◆ memory_use()

◆ rtoa() [1/2]

◆ rtoa() [2/2]

◆ shift()

◆ zero_gaps()
